Introduction of Small Drill Rigs Attachments

SOLUTION TO CONVERT EXCAVATOR TO DRILL RIG

Either build a drill rig from your own excavator or we could provide the whole set of drill rigs. The conversion remains the original hydraulic and electric systems of the excavator and achieves Kelly's drilling functionality by adding additional components. This helps improve work efficiency and facilitates after-sales maintenance as you don't have to change the operation habits on the base of the original machine.

Drill  Rig Attachment 01
Fast Connected Drilling Attachment for Excavator (1)

Associated Products

  • Drilling attachments with DTH hammer function
  • FR10AAT Drilling Attachment for Excavator
Introduction


Drilling Attachments with DTH Hammers

Applications: The solution from an excavator to a drill rig with multi-functions- Kelly drilling, CFA drilling, and DTH hammer. We are excited to introduce our custom-designed rotary drill rig, converted from the Hitachi ZX330 excavator, tailored specifically for our customers.


Drilling attachments with DTH hammer function
Features

1. Quickly switch between DTH, Kelly drilling, and CFA functions to adapt to different geological conditions.

2. Remains the original hydraulic and electrical systems of the excavator for maintenance in the future, and revert this drilling rig back to an excavator.

Specification

Item

Description

Parameter

Remarks

1

Max torque

55 kN.m


2

Drilling diameter

1.0 mmax 1.2m


3

Max drilling depth

20 m

With kelly bar

4

Kelly bar info

299×4×5.5m


5

Mast

Right/left inclination

10°




Forward

90°




backward

20°


6

Rotary

Torque

55 kN.m




Speed

0-40 r/min


7

Cylinder crowd

Stroke

4 m




Crowd push

5 t




Lifting force

7 t


8

Main winch

Max lifting force

7 t




Rope diameter

16 mm


9

Auxiliary winch

Max lifting force

1 t




Rope diameter

10 mm


10

DTH depth

8 m


13

Working, W*H

3.2*10 m


15

Transportation L*W*H,m

13*3.2*3


18

Weight

 34 t


19

Shipment

With kelly bar


Photogallery
  • Drilling attachments with DTH hammer function
  • Drilling attachments with DTH hammer function
  • Drilling attachments with DTH hammer function
  • Drilling attachments with DTH hammer function
Video

Introduction

FR10AAT Fast Connected Drilling Attachment for Excavator

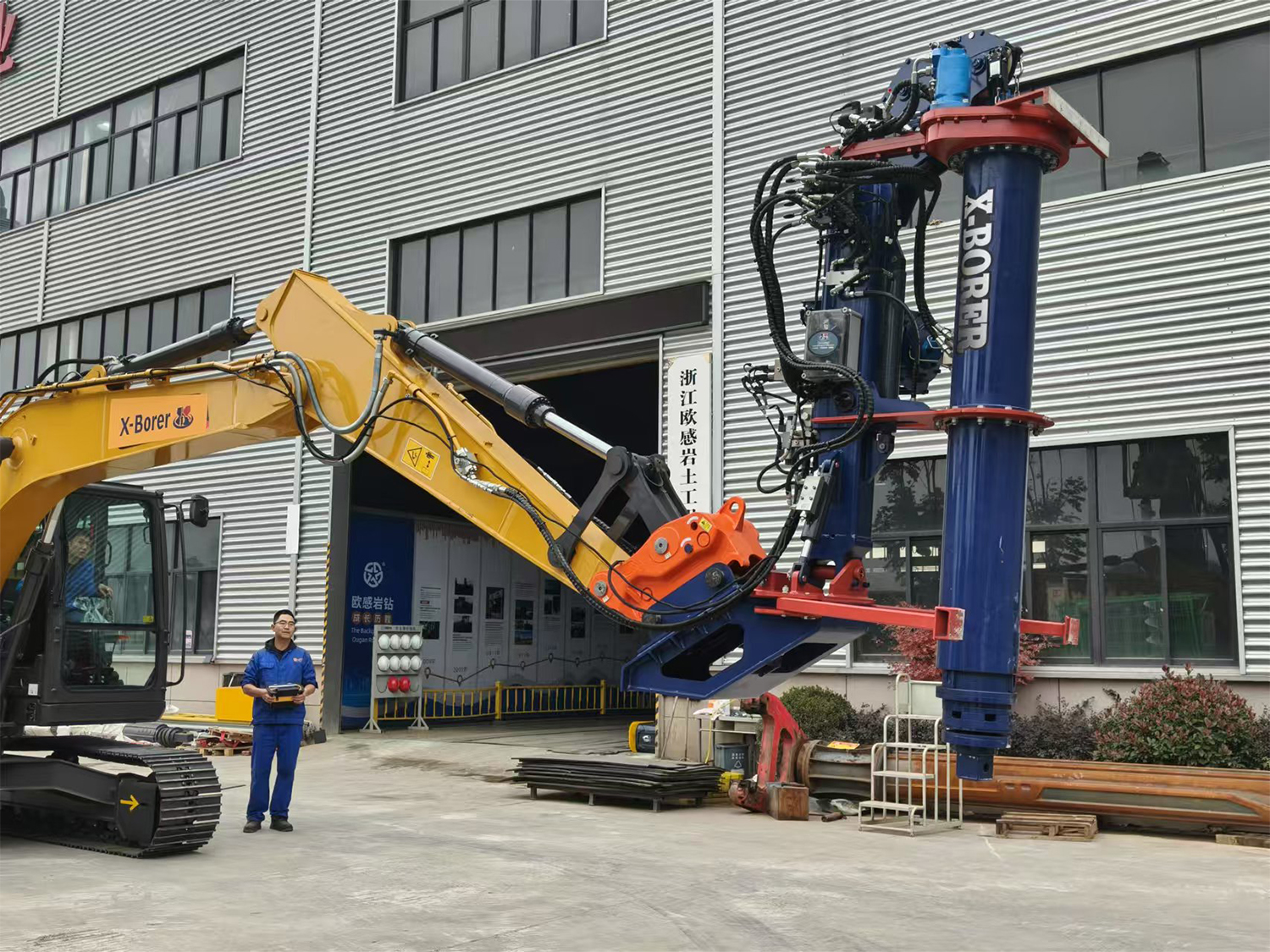

Applications: FR10AAT Drilling attachment is a revolutionary addition to the X-Borer product range and can be easily connected on existing excavators and maintain the remote control system without the need to modify the original excavator's hydraulic system. It offers full rotary drilling functionality with Kelly bar providing efficiency in excavation and drilling operation. Below is a specification of the excavator-converted drill rig FR10 with the FR10AAT drilling attachment.





FR10AAT Drilling Attachment for Excavator
Features

1. The drilling attachment can be easily and quickly installed on existing excavators.

2. Maintain the remote control system without the need to modify the original excavator's hydraulic system.

3. Offers full rotary drilling functionality combined with Kelly bar.

Specification

Description

Paramete

US UnitsMetric Units

Engine

Model

Cummins QSF3.8

Rated power

119hp

89kw

Rated speed

2200rpm

Rotary head

Maximum output torque

7376lbf-ft

10kN.m

Drilling speed

35-70rpm


Max drilling diameter

35.4in

900mm
Max drilling depth

26ft

8m

Crowd winch

Maximum pressure

4271lbf

19kN
Maximum lifting force

4946lbf

22kN

Maximum stroke and sledge

20in

510mm
Main winchMaximum lifting force

5620lbf

25kN
Maximum lifting speed

164ft/min

50m/min

Main winch

0.5in

12mm
Hydraulic systemWorking pressure

2901psi

200bar

Operating weight

3306lb

1.5T(excavator chassis excluded )
