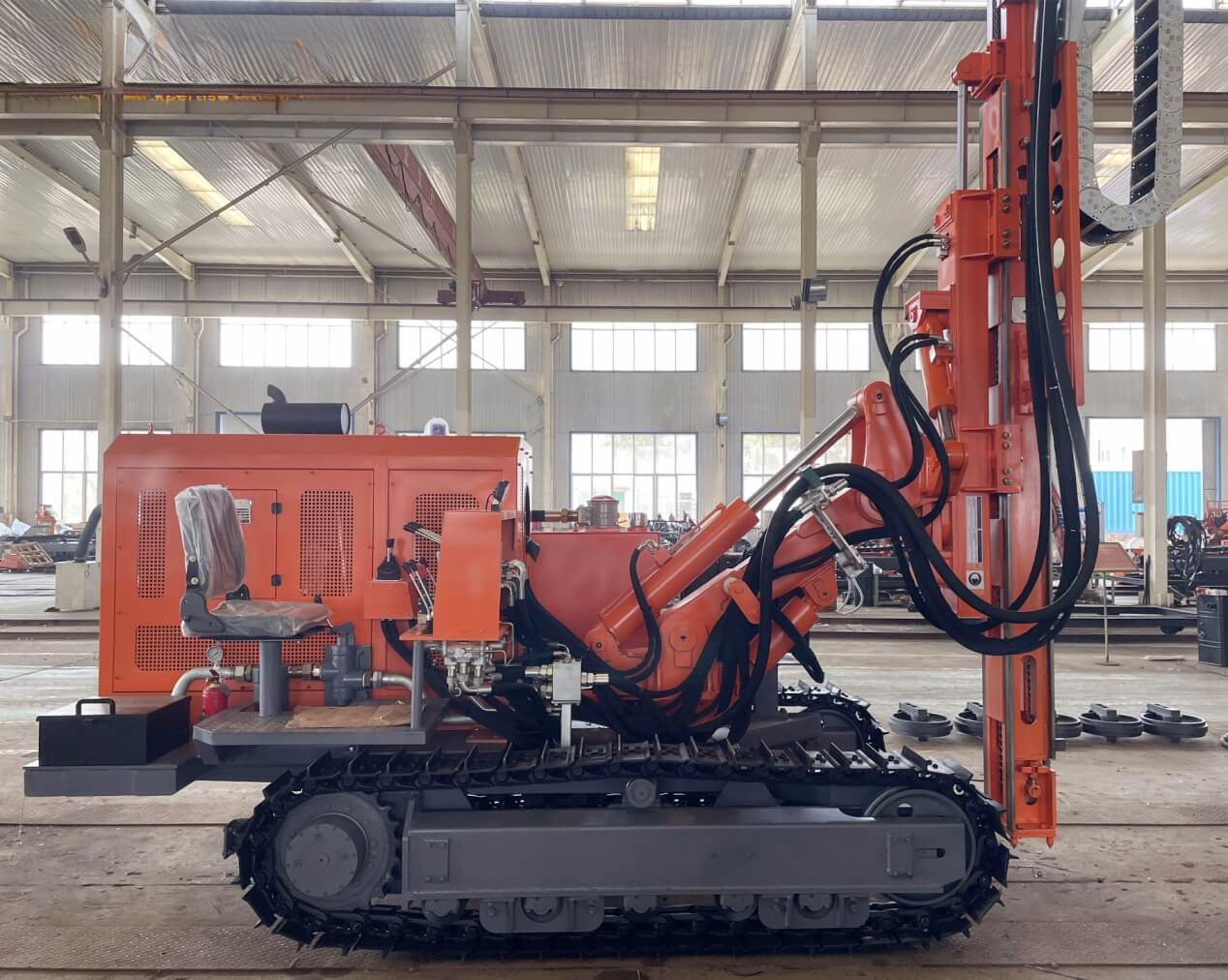

The overall structure of the solar pile driver is an upgrade based on a rotary drilling rig, tailored for solar piling, while also incorporating the advantages of rotary drilling rigs, such as higher body, mast, and articulation point strength compared to traditional solar pile driver. Equipped with a dual-motor power head, the standard power head torque is 0.8 ton-meters, with an optional 1 ton-meter power head available. Additional features, such as mast verticality and drilling depth monitoring function, can be selected according to customer requirements. This pile driver not only boasts a high degree of automation, significantly reducing manual labor, but also features environmental friendliness, high efficiency, and energy savings, bringing tangible benefits to construction enterprises.
Application FSP-650, especially suitable for solar park construction, has various applications. This Multi-function Solar Pile Driver is utilized for driving solar piles, ground screw piling, DTH piles, etc.
1. Max. hammer impact energy: 1350joule, max. hammer stroke: 6m in the screw piling application.
2. Hydraulic hoses with wear-resistant protective sleeve enjoy longer service life.
3. The imported Italy Hydro hydraulic valve and USA Permco hydraulic pump largely improve the piling efficiency.
4. The emission standard meets up to Euro-IV.
| Specification of FSP-650 Solar Pile Driver | |
| Description | Parameters |
| Impact frequency (bpm) | 600--1000 |
| Impact energy (joule) | 1350 |
| Work pressure (bar) | 130--150 |
| Bore diameter (inches/mm) | Spiral drill 20” (500 mm), DTH drill 12” (300 mm) |
| Bore depth (inches/m) | 1,180” (30 m) |
| Air consumption (m³/min) | 8--16 |
| Air pressure (psi - MPa) | 100-130 (0.7--1.6 MPa) |
| Once promotion (inches/mm) | 160” (4100 mm) |
| Pile length | 236” (6000 mm) |
| Skid pitch (°) | 95 |
| Boom swing angle (°) | 110 |
| Boom pitch (°) | 30° |
| Swinging angle of skid (°) | Left and right totally 40 |
| Host power (hp/ kW) | 74 (55 kW) |
| Engine brand and Rated power | CUMMINS QSF2.8T 4F |
| 55 kW | |
| Climbability ( °) | 35 |
| Dimension (L*W*H) mm | 6240*2250*3000 |
| Weight (lbs/kg) | 16,200 (7350 kg) |
| Travel speed (km/h) | 0--2.5 |
| Optional Configuration | |
| Rotary head | |
| Rotary torque | 6200 n.m |
| Rotary speed | 0–110 rpm |
| Screw piling diameter | Max. 500 mm |
| Screw piling length | Max. 6000 mm |
| Rock bore diameter | 90–350 mm |
| Rock bore depth | 0–100 m |
